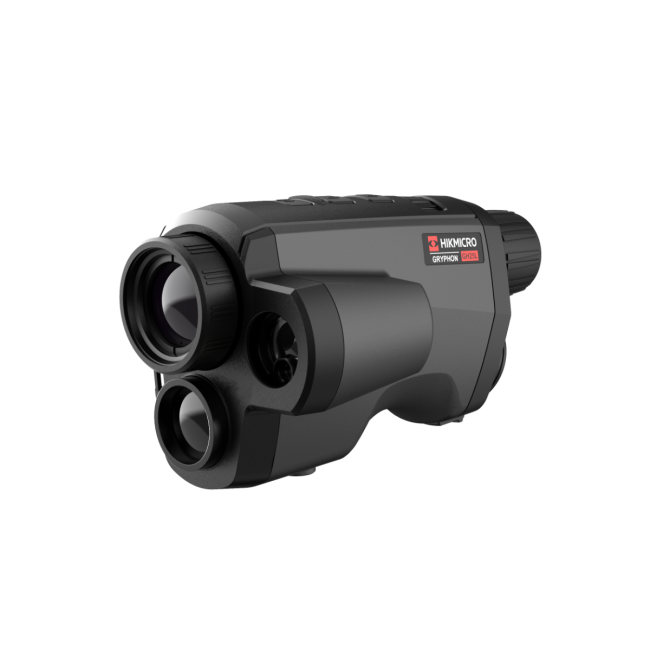

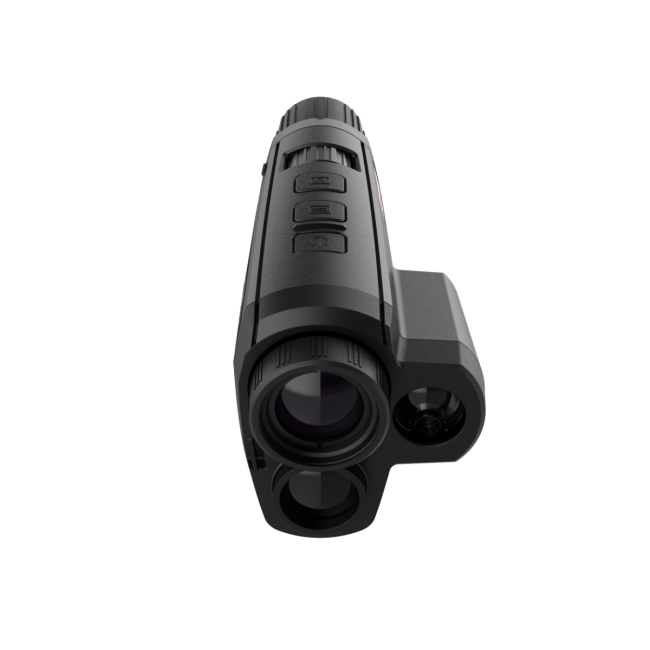

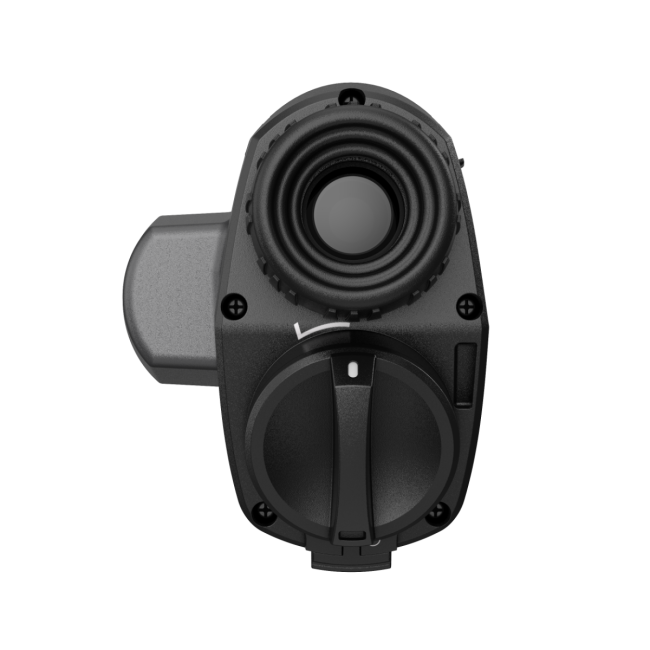

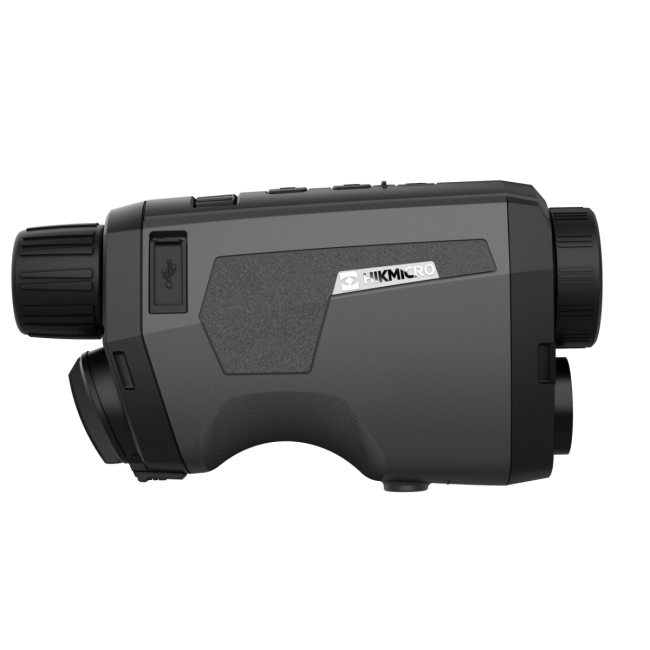

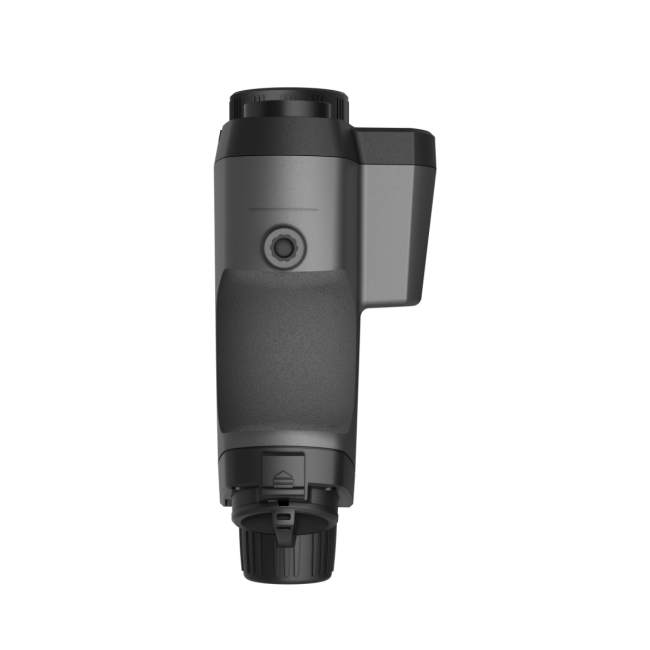

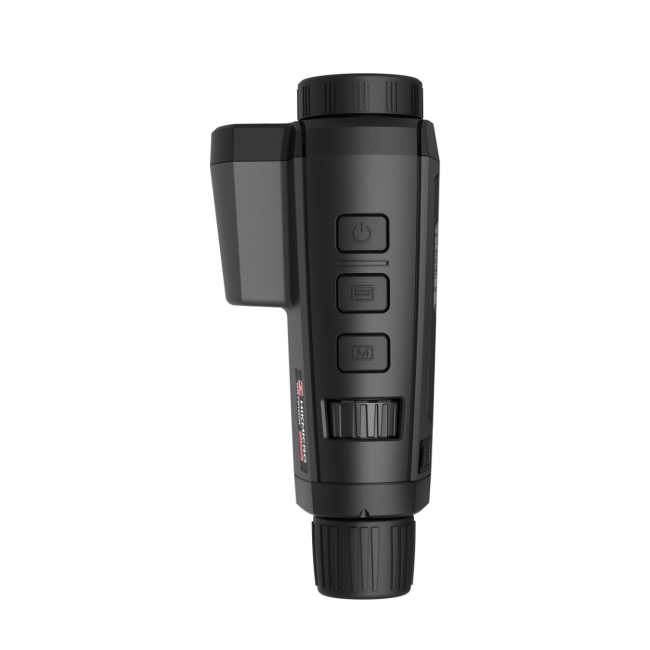

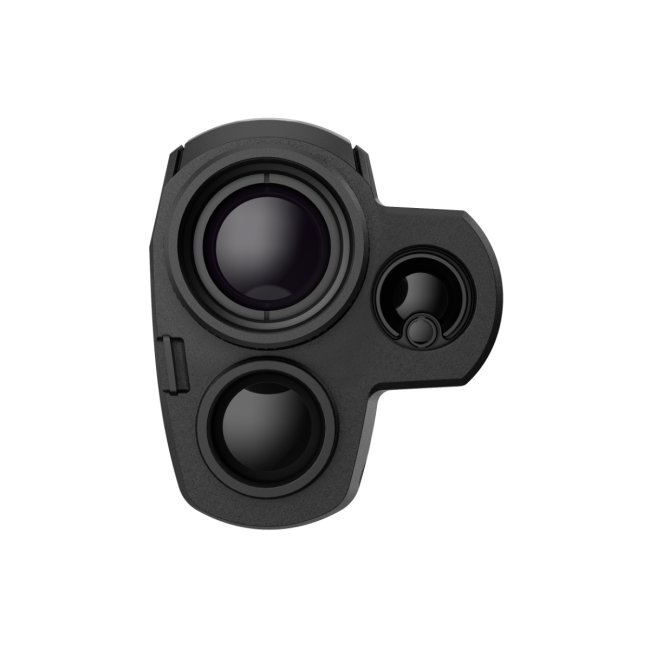

Gryphon Fusion Thermal Vision Monocular + GH25L Laser Rangefinder - Hikmicro

Gryphon Fusion Thermal Vision Monocular + GH25L Laser Rangefinder - Hikmicro

This Gryphon fusion thermal vision monocular + GH25L laser rangefinder from Hikmicro offers an infrared sensor with a resolution of 324 × 288 pixels and an OLED monitor with 1024 × 768 pixels. Supplied with 1 quick start guide, 1 anti-dust cloth, and 1 Type-C cable, this night vision monocular is ideal for observation, recording photos, videos, and even live streaming on smartphones or tablets.

MAIN FEATURES:
- Thermal resolution 384 × 288
- High sensitivity detector
- NETD less than 35 mk (25 °C, F # = 1.0)
- Image processing technology: Adaptive AGC, DDE, 3D DNR
- OLED screen with 1024 × 768 px resolution
- Supports distance measurement via integrated laser rangefinder and hotspot function
- Supports video / photo recording, built-in EMMC (16 GB)
- Supports digital zoom and cursor function, adjustable color palettes
- Fusion Technology (fusion of thermal imaging and optical imaging)
- Up to 5 hours of battery life
- Color: black

THERMAL SENSOR:
- Sensor: Uncooled focal plane array
- Resolution: 384 × 288
- Frame rate: 50 Hz
- Pixel Pitch: 12 μm
- NETD: ≤ 35 mk (@25°C), F#=1.0
- Focal length: 25 mm
- Field of view: 10.53° × 7.9° (H × V)
- Detection range: Max. 1,200 m
- Aperture: F1.0
- Optical magnification: 2.39x
- Focus: manual

OPTICAL SENSOR:
- Sensor: 1/3ʺ CMOS, 1960x1200 @25 FPS
- Focal length: 22 mm

IMAGE DISPLAY:
- Monitor: OLED, 1024 × 768
- Palettes: Black hot, white hot, red hot, fusion
- Scene mode: Jungle, reconnaissance
- Contrast adjustment: Yes
- Brightness adjustment: Yes
- Digital zoom: 1x, 2x, 4x, 8x

SYSTEM (function):
- Diopter adjustment: yes
- WiFi mode: Yes
- Interface: USB-C
- Photo capture: Yes
- Video capture: Yes
- Distance measurement: Yes

SYSTEM (parameters):
- Battery type: removable battery
- Internal memory: 16 GB
- Battery type: 18650 Battery
- Battery life: 5 h
- Operating temperature: -20 / +55 °C
- Waterproof: Yes (IP67)

LASER RANGEFINDER:
- Laser rangefinder class: Class 1
- Wavelength: 905 nm
- Maximum range: 600 m
- Accuracy: +/- 1 m
