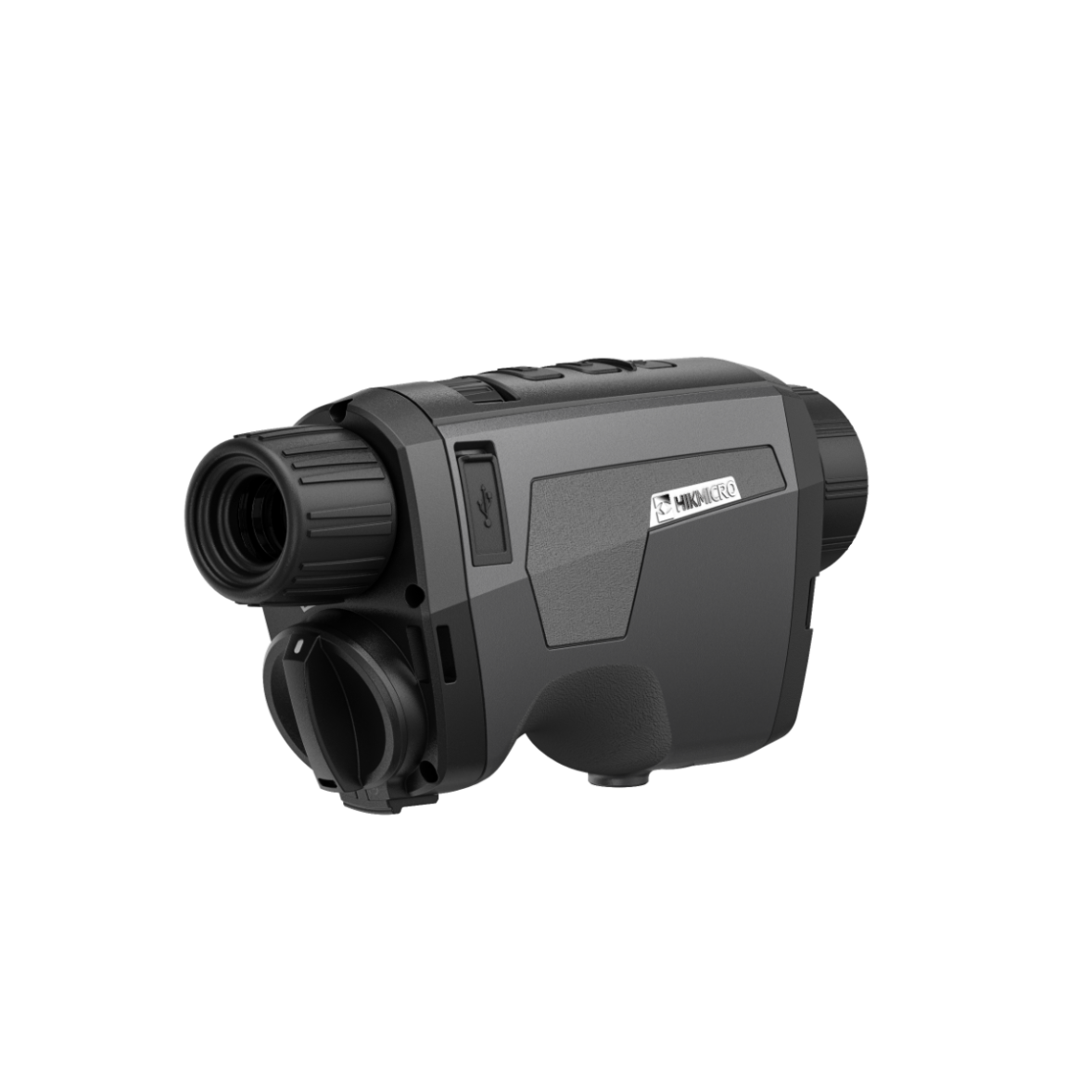

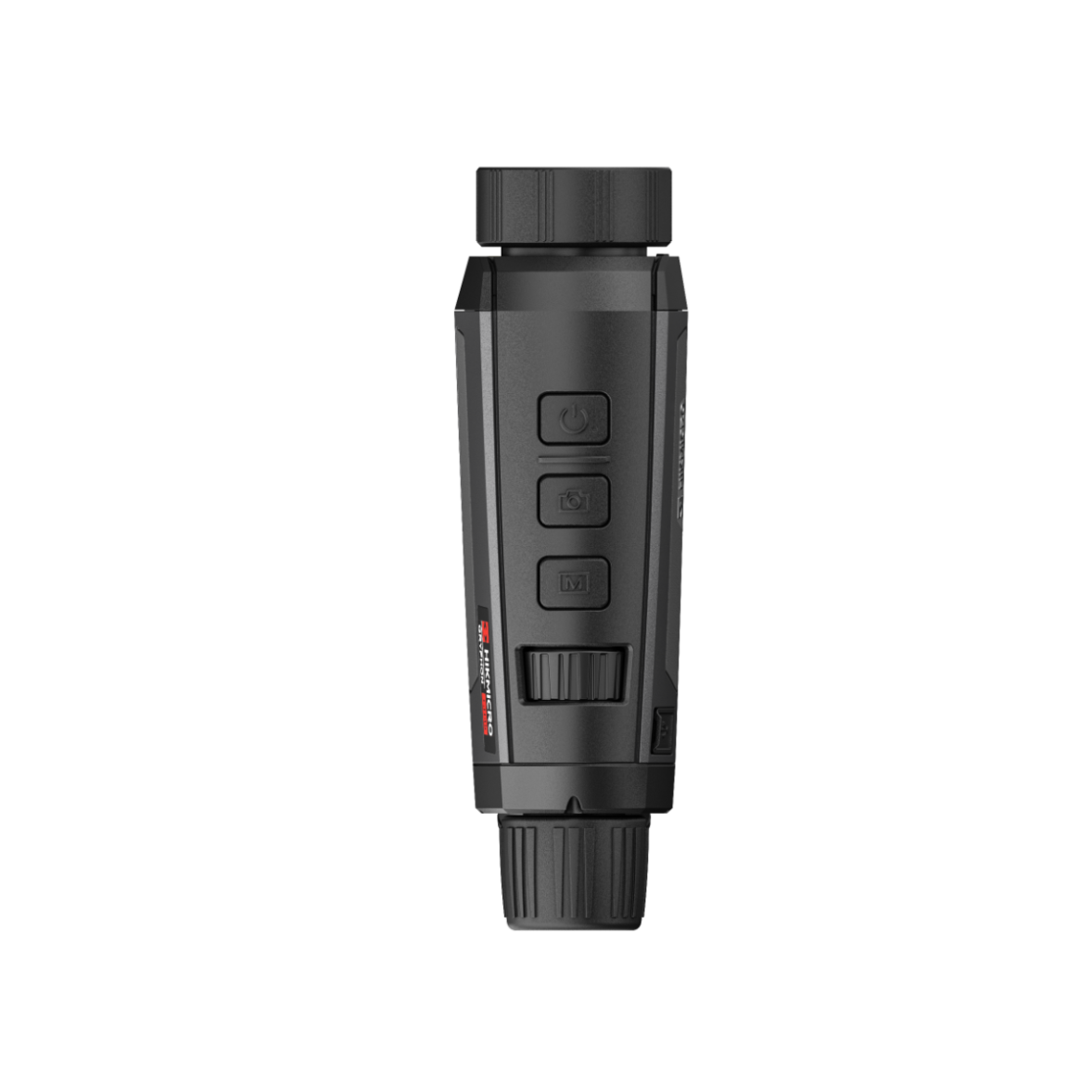

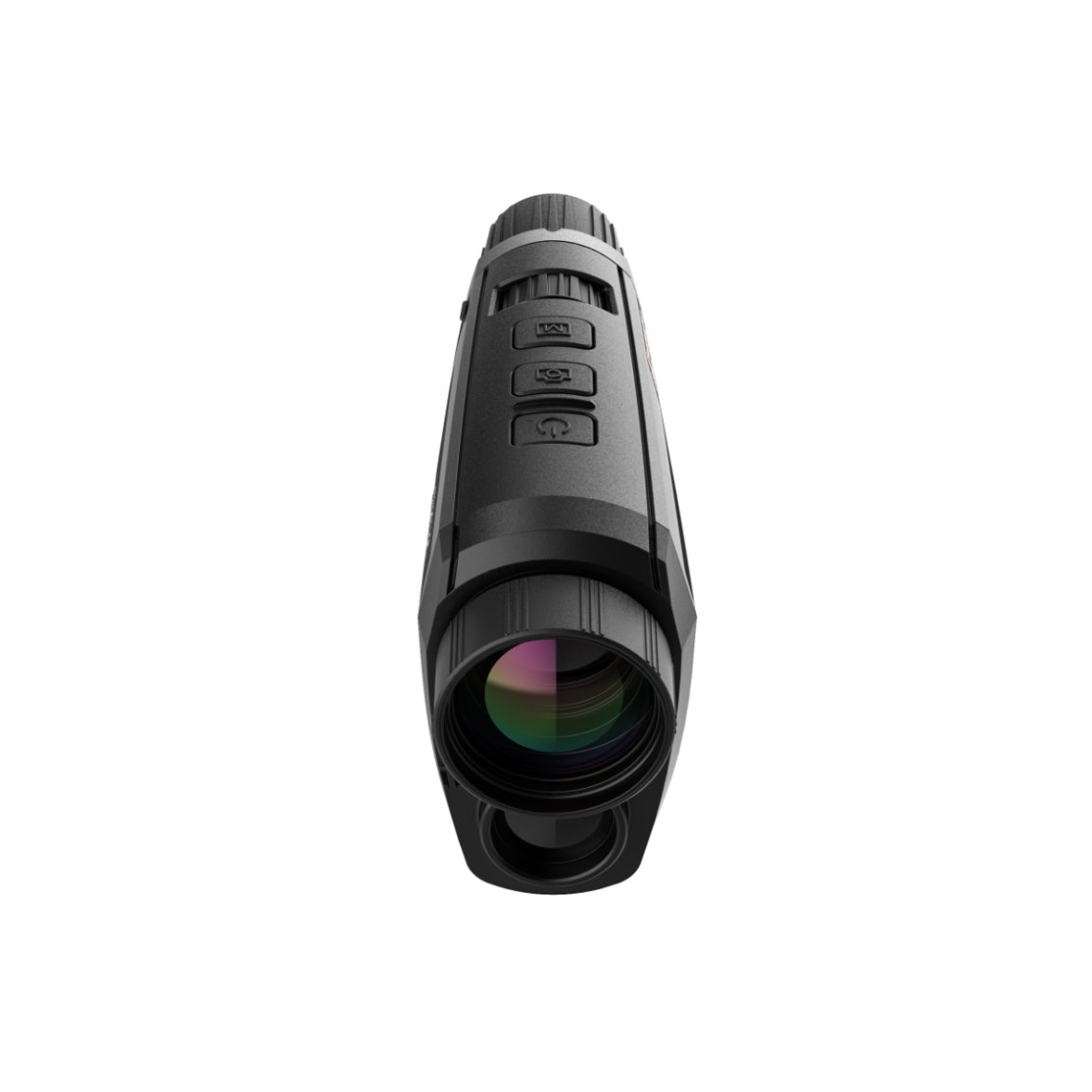

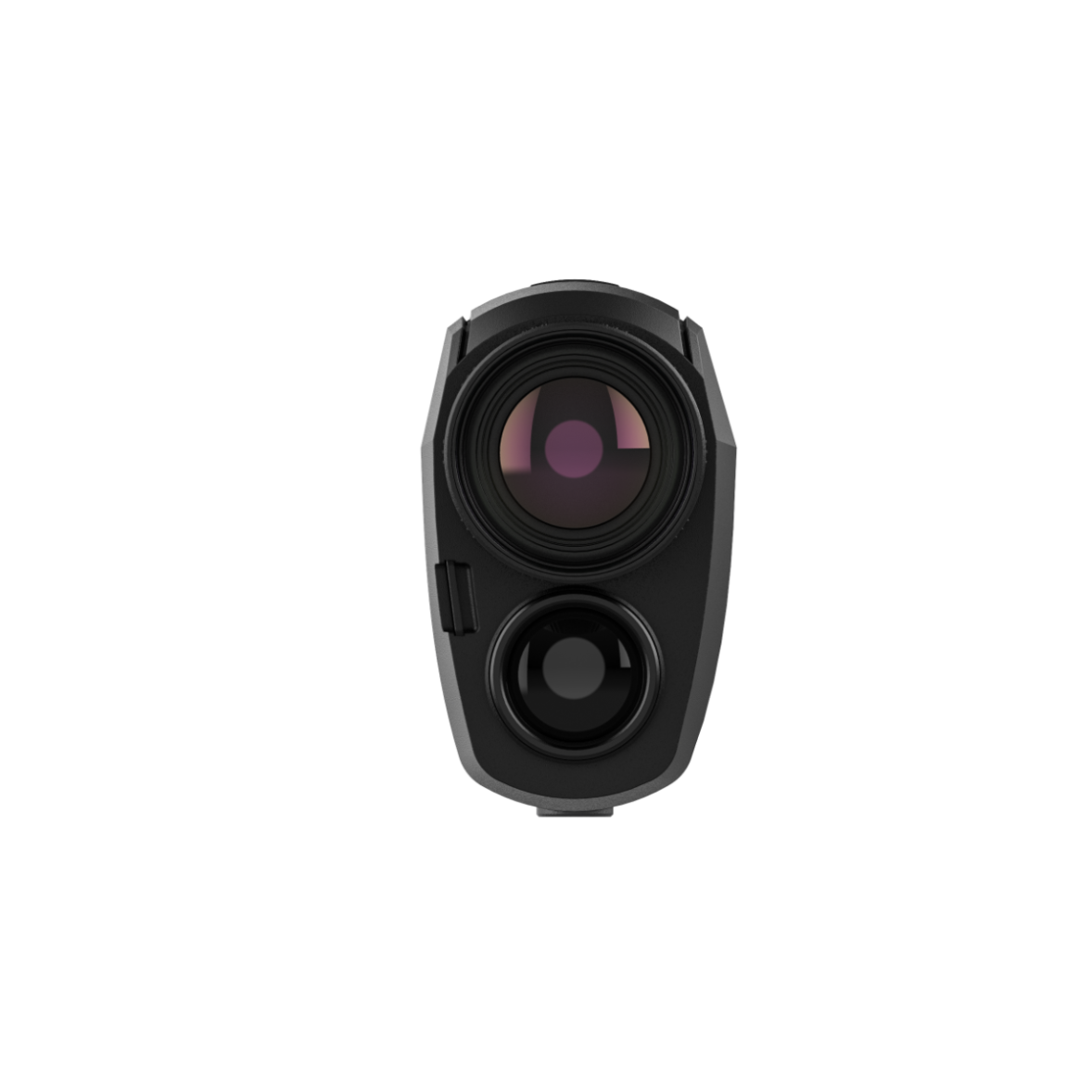

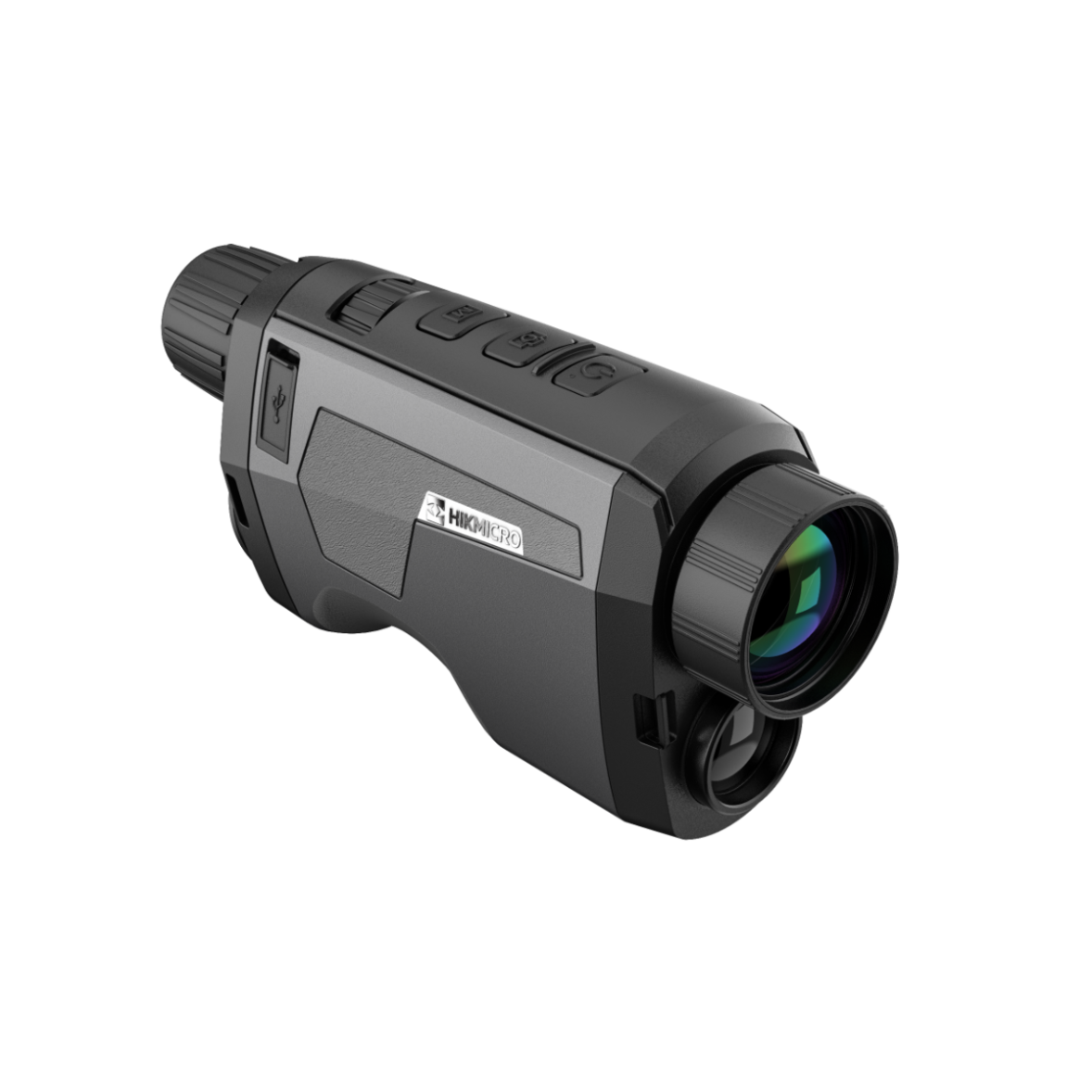

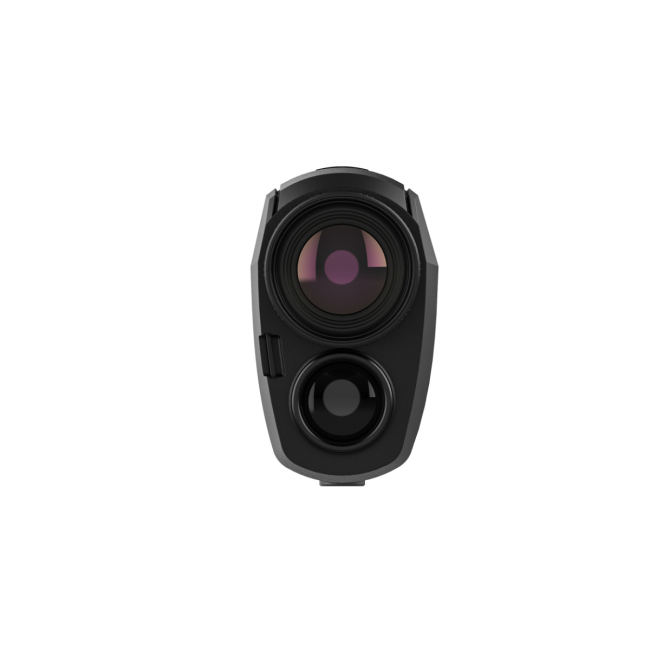

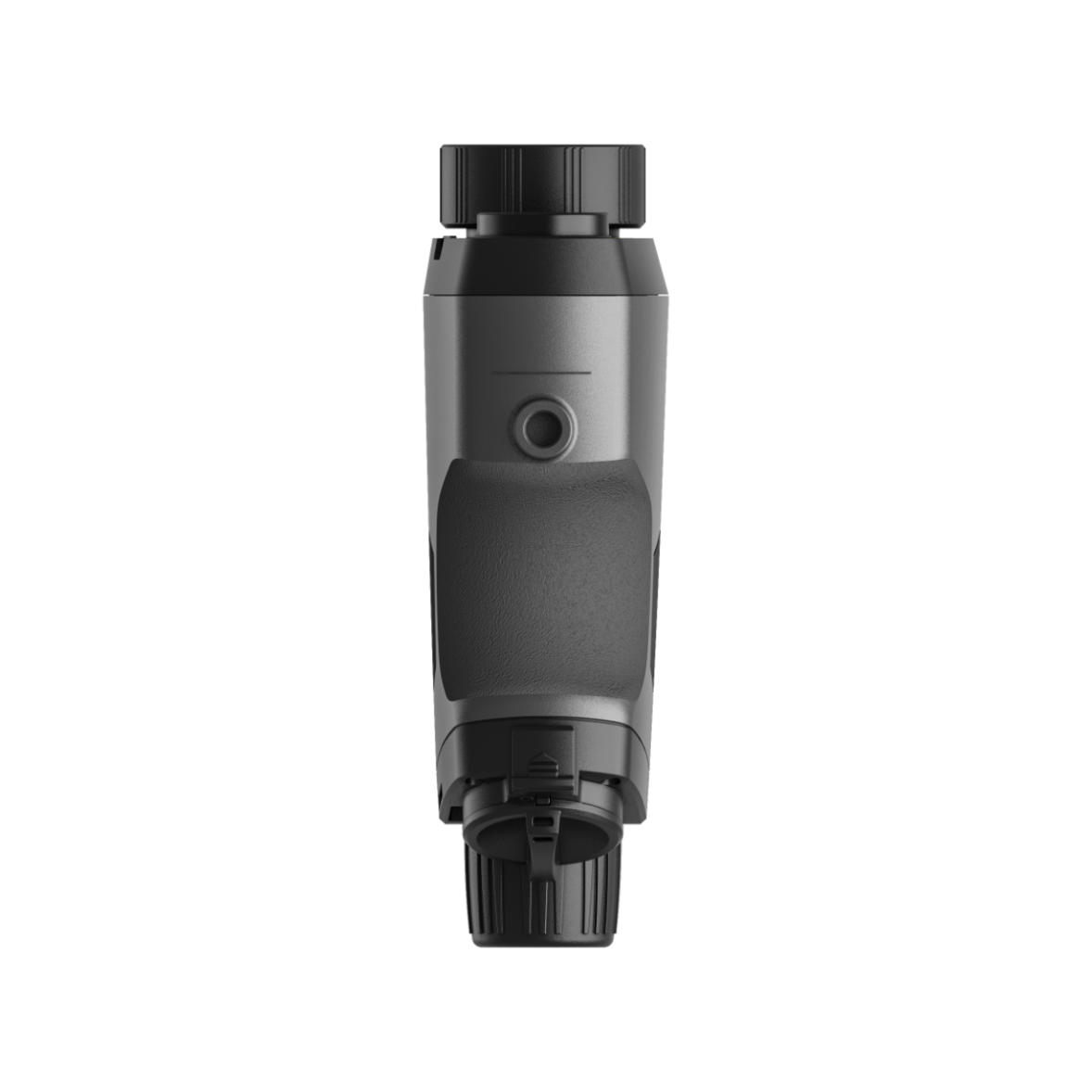

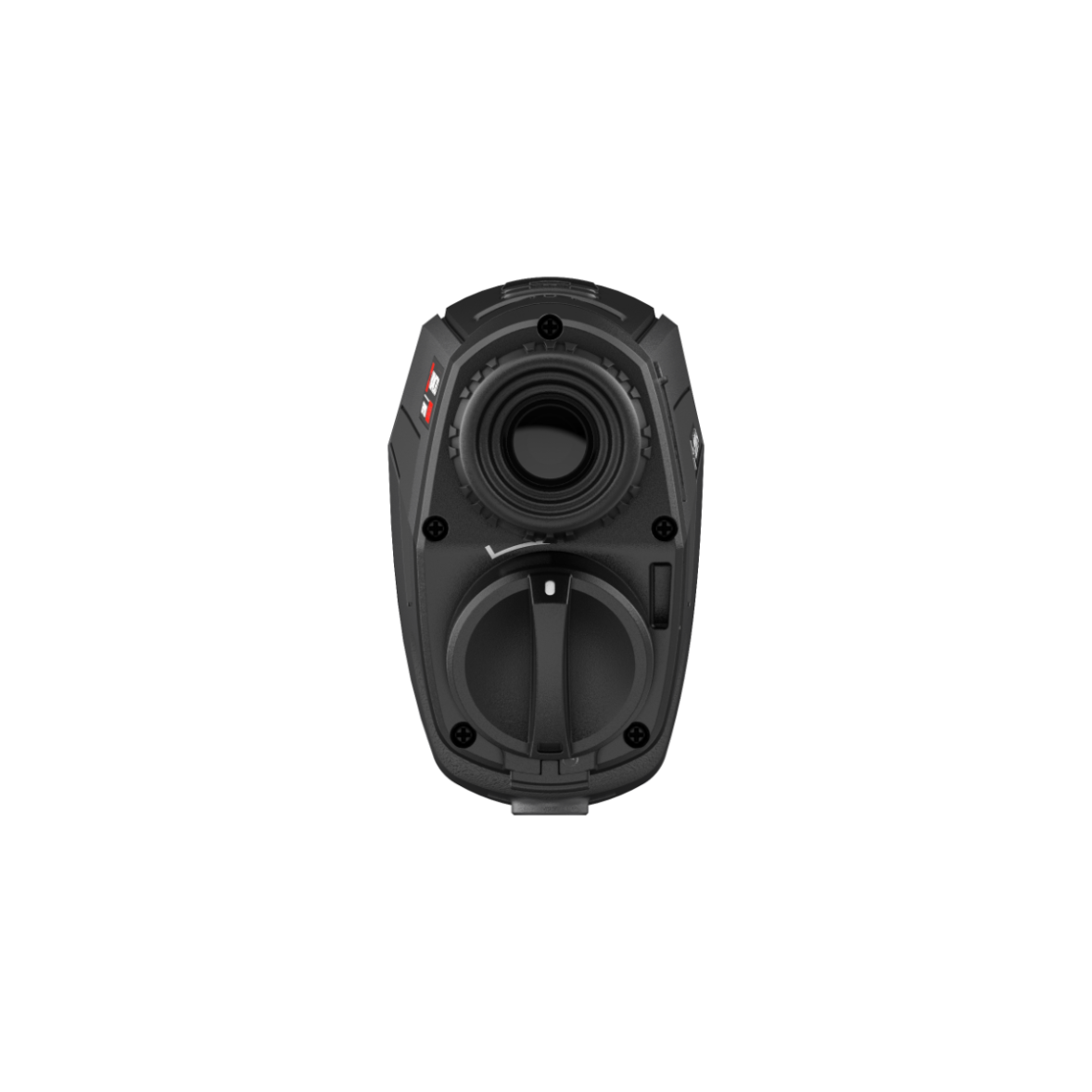

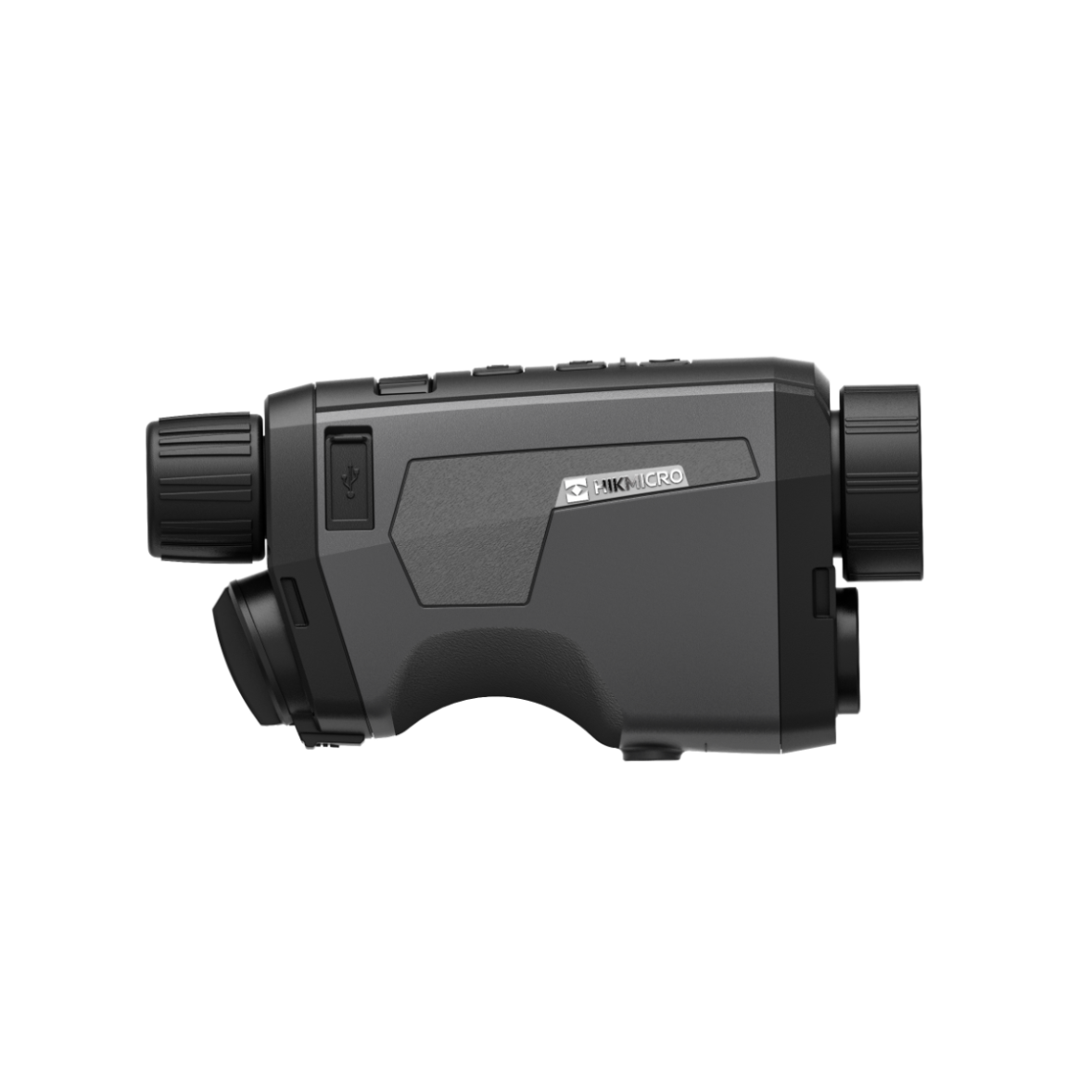

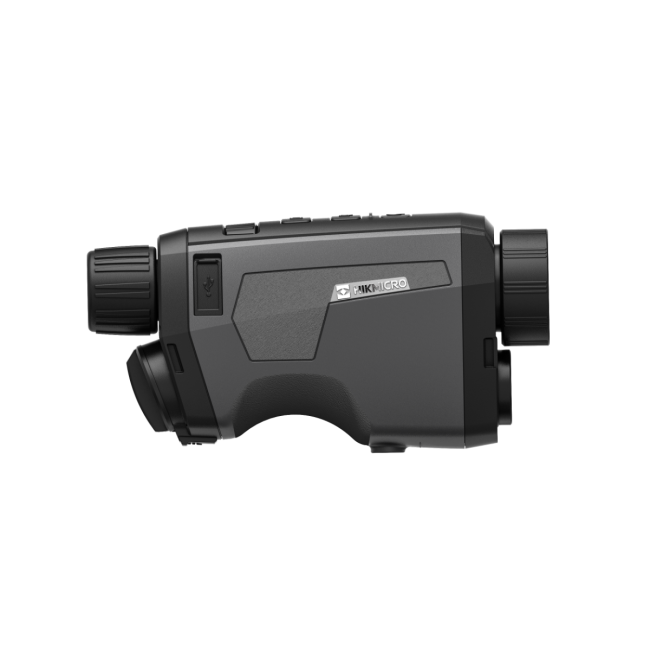

Hikmicro Gryphon GQ35 Thermal Fusion Monocular

Hikmicro Gryphon GQ35 Thermal Fusion Monocular

This Hikmicro Gryphon GQ35 thermal fusion monocular allows for fast and detailed thermal detection thanks to its innovative "Fusion" bi-spectral imaging technology. Ideal for surveillance, search, rescue, hunting or biodiversity studies, this Gryphon GQ35 night vision monocular comes with 1 quick start guide, 1 anti-dust cloth, and 1 Type-C cable.

MAIN FEATURES:
- Thermal resolution 640 × 512
- High sensitivity detector
- NETD less than 35 mk (25°C, F# = 1.0)
- Image processing technology: Adaptive AGC, DDE, 3D DNR
- 1024 × 768 px resolution OLED screen
- Supports hotspot function
- Supports video/photo recording, built-in EMMC (16 GB)
- Supports digital zoom and cursor function, adjustable color palettes
- Fusion Technology (merging of thermal imaging and optical imaging)
- Up to 4.5 hours of battery life
- Color: black

THERMAL SENSOR:
- Sensor: Uncooled focal plane array
- Resolution: 640 × 512
- Frame rate: 50 Hz
- Pixel Pitch: 12 μm
- NETD: ≤ 35 mk (@25°C), F#=1.0
- Focal length: 35 mm
- Field of view: 12.52° × 10.03° (H × V)
- Detection range: Max. 1,700 m
- Aperture: F1.0
- Optical magnification: 2.00x
- Focus: manual

OPTICAL SENSOR:
- Sensor: 1/3ʺ CMOS, 1960x1200 @25 FPS
- Focal length: 22 mm

IMAGE DISPLAY:
- Monitor: OLED, 1024 × 768
- Palettes: Black hot, white hot, red hot, fusion
- Scene mode: Jungle, recognition
- Contrast adjustment: Yes
- Brightness adjustment: Yes
- Digital zoom: 1x, 2x, 4x, 8x

SYSTEM (function):
- Diopter adjustment: yes
- WiFi mode: Yes
- Interface: USB-C
- Photo capture: Yes
- Video capture: Yes
- Distance measurement: Yes

SYSTEM (settings):
- Battery type: removable battery
- Internal memory: 16 GB
- Battery type: 18650 Battery
- Battery life: 4.5 h
- Operating temperature: -20 / +55 °C
- Waterproof: Yes (IP67)
